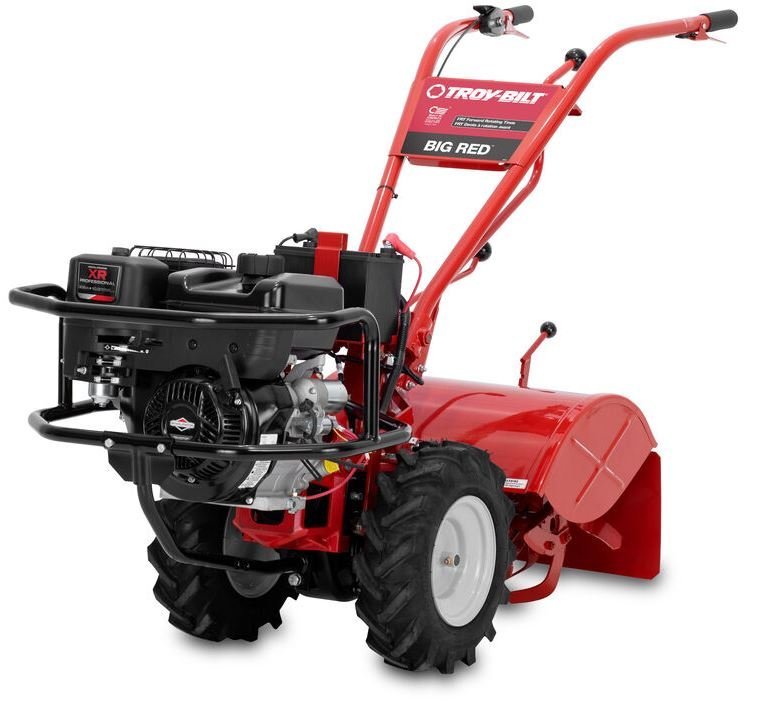

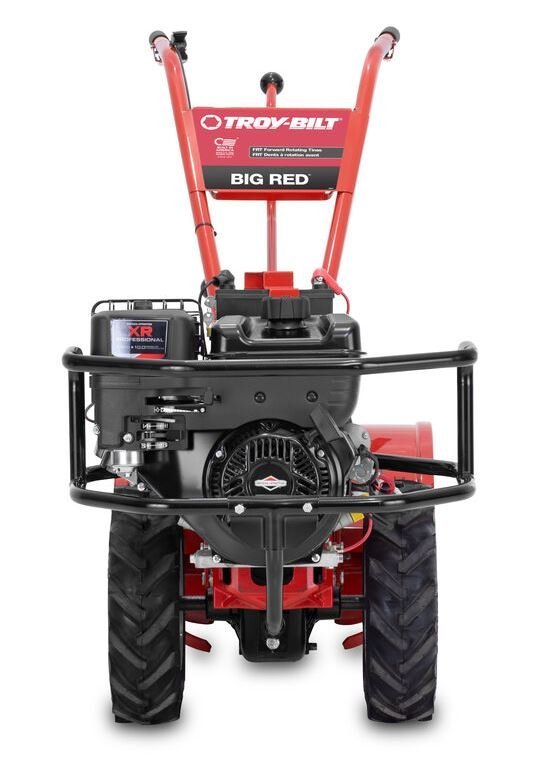

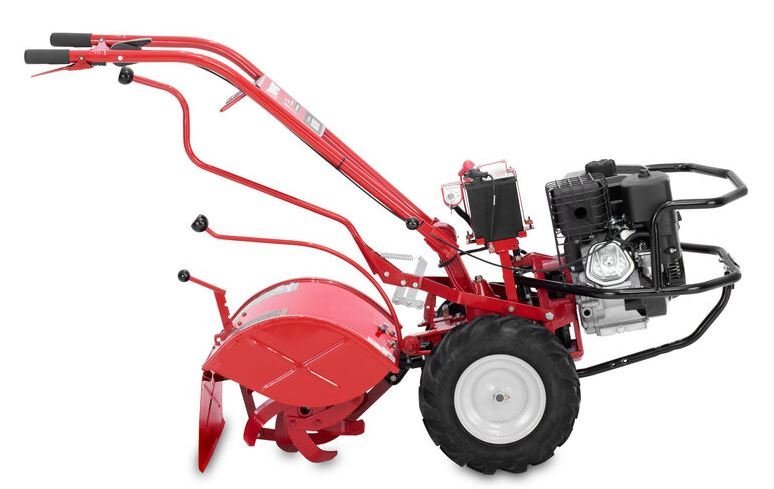

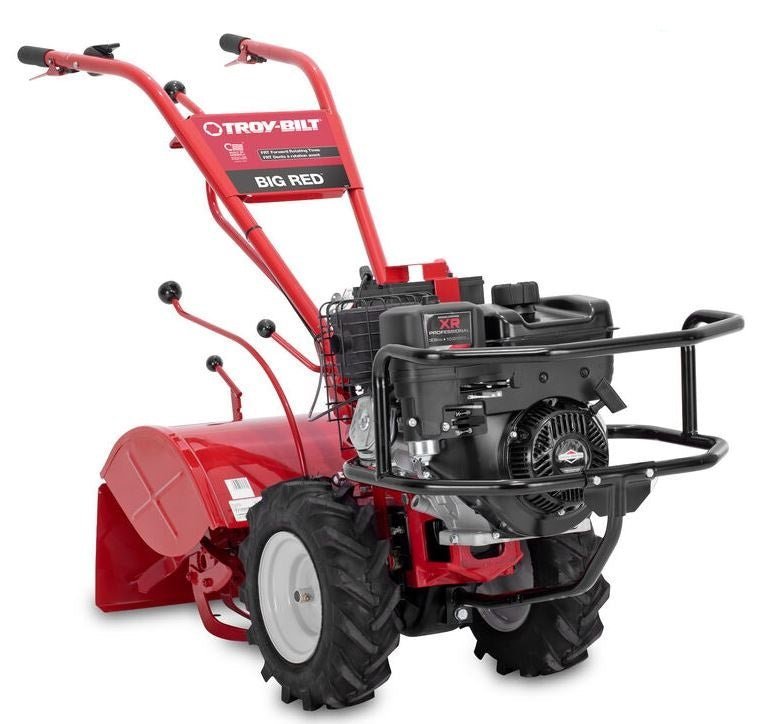

It’s easy to start Big Red® with the electric start 306cc Briggs & Stratton® engine. Work at your own pace and maneuver through large spaces with the 20″ maximum tilling width and 4 forward and 2 reverse speeds. Plow-style handle swings out to the side, allowing you to walk on the untilled soil as you operate.
The Troy-Bilt Big Red is equipped for the heaviest-duty jobs in gardens over 2,500 square feet. It will start when you need it with electric start. Work at your pace with 4 forward speeds and maneuver with 2 reverse speeds and a neutral option.
- Powered by a 306cc Briggs & Stratton OHV engine to make tending your garden easier.
- Electric start for ease of starting and dependability.
- Choose from 4 forward, 1 neutral, and 2 reverse speeds for added versatility.
- Just One Hand™ operation allows the tiller to be guided with literally one hand thanks to a well-balanced and easy to control design.
- 20-inch tilling width allows you to tackle more soil at once saving you time.
- 12-inch, forward rotating Bolo™ tines with depth stake for up to 7-inches of tilling depth.
- Forward rotating tines move in the same direction as the wheels and are best used in areas that have previously been tilled.
- Full-sided tine shields provide more protection as you work.
- 16-inch agricultural tires enhance traction and mobility in tough soil conditions.
- The included front bumper protects your tiller’s engine.
- Troy-Bilt has a limited lifetime transmission warranty on cast iron gear casting and precision cut bronze gears.
- 2-year limited warranty on other components for peace of mind.
Engine
- Engine BrandBriggs & Stratton®
- Engine ModelXR1450 Professional
- Engine Model Number19N137-0238
- Engine Displacement306cc
- Engine Output14.5HP
- Starter TypeElectric and Recoil
- Engine Oil Capacity26oz
Drive System
- Drive SystemBronze Gear
- Transmission HousingCast Iron
Chassis
- BumperYes
Controls
- HandleAdjustable Plow with Swing Out
- Handle Grip(s)Standard
Specifications
- Rear ShieldYes
- Side ShieldNon-Adjustable
- Tilling Depth7″
- Tilling Diameter12″
- Tilling Width20″
- Tine Rotation DirectionForward-rotating
- TinesBolo
- Wheels16″ x 4″ Pneumatic
Additional Specifications
- Model Number21AE682WB66
Warranty
- Residential Warranty2-year limited
- Commercial WarrantyNo
- Transmission WarrantyLifetime limited
Tiller Tine Specifications
- Tine Rotation DirectionForward-rotating
- Tine LocationRear
- Tilling Diameter12″
Disclaimers
- SpecificationsSpecifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
