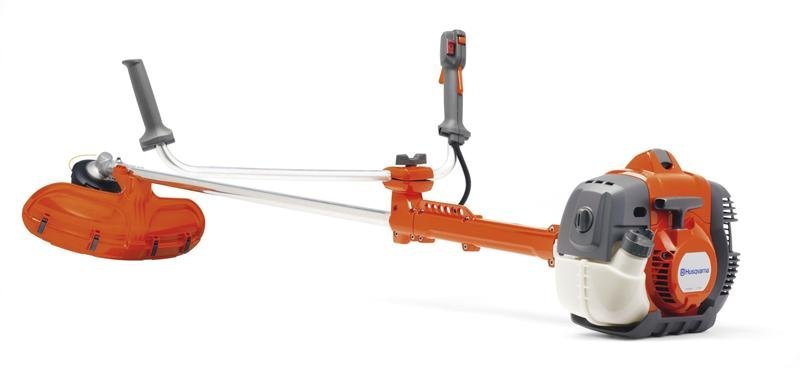

HUSQVARNA 336FR

336FR
Husqvarna 336FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits both products offer in one, effective package. The X-Torq® engine provide raw power and excellent fuel economy. Delivered with Balance 35 harness.

X-Torq® engine
The X-Torq® engine design reduces harmful exhaust emissions by up to 60% and increases fuel efficiency by up to 20%.

Traveling connection
Travelling connection requires less energy when working and can be connected in a grass- or forest position.

Air Purge
Removes air from carburetor and fuel system for easy starting.

Auto return stop switch
When the machine is turned off, the stop switch automatically returns to the start position for easier starting.

Versatile guard
The cutting attachment guard can be used with either a grass blade or a trimmer head.

Adjustable handle bar
Adjustable and ergonomically designed handlebar for best comfort.

Soft grip handles
Soft grip handles for comfortable use

Ergonomic handle
Comfortable handle design.

Engine specification


Cylinder displacement
34.6 cc

Cylinder bore
1.5 inch

Cylinder stroke
1.2 inch

Power output
1.9 hp

Maximum power speed
8400 rpm

Fuel tank volume
20.3 fl oz

Maximum recommended engine speed
11500 rpm

Carburetor
Zama

Fuel consumption
435 g/kWh

Fuel consumption
1.3 lbs/h

Idling speed
2900 rpm

Spark plug
Champion RCJ6Y

Electrode gap
0.02 ”

Ignition system
Walbro

Clutch engagement speed
3800 rpm (±120 rpm)

Maximum rpm output shaft
8220 rpm

Output shaft thread
M12x1.75V

RPM limiter
Yes

Air filter type
Foam

Equipment


OEM Trimmer head
T35 M12

OEM Grass blade
Multi 300-3

OEM Saw blade
Scarlett 200-22

OEM Harness
Balance 35

Transmission data


Drive gear angle
35 °

Lubricants


Lubricant type (bevel gear)
Mineral grease

Vibration & noise data


Equivalent vibration level (ahv , eq) left / right handle
3.7/2.7 m/s²

Sound pressure level at operators ear
98 dB(A)

Sound power level, guaranteed (LWA)
113 dB(A)

Overall dimensions

Weight (excl. cutting equipment)

15.4 lbs

Tube length

58.4 inch

Tube diameter

1.1 “
